Introduction
MK-65 Rice Bar Making Machinery can produce all kinds of shapes of cereal bars with the raw material of rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc.
Features
1. The shapes can be round, cylindrical, square, semi round, triangular and blossom, etc.
2. Mechanical pressing & rubbing, does not hurt nuts, without waste.
3. Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.
4. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
5. Moulds and hopper are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.
6. Cooling conveyer can be customized as demand.
Technical Parameters for Cereal Bar Forming Machine
| Output | 5000-30000pcs/hr |
| Power | 2.5kw |
| Product max thickness | 2cm |
| Mould size | 640 x 126mm |
| Effecitive mould size | 540 x 126mm |
| Weight | 1200kg |
| Dimension | 8800 x 1000 x 1450mm |
Full information for Each Equipment as below:
1.Sandwich Pot (200L)
Characters:
Has large heating area, high thermal efficiency, even heating, liquid material boiling, time is short, easy to control the heating temperature etc..
Technical parameters:
Voltage:380V
Power:15kw
Volume:200L
Inner diameter of the boil:840mm
Outline dimension:905*990*1470mm
2.Mixer
Power:1.1kw
Voltage:380V/50HZ
Outline dimension:700*500*1200mm
Mix capacity:15KG/time
3.Full automatic cereal bar forming machine
This machine are suitable for flatting and cutting the muesli bar.Easy to operation.
Characters:
1.Frequency control,flatting and cutting for one time
With With multiple level structure, pressed flat, uniform thickness
2.With multiple flat structure,pressed flat,uniform thickness
3.Automatic cutting ,Time saving, labor saving, economical and convenient
Technical parameter:
Power:4kw
Voltage:380V/50Hz
Outline dimension:11800*1200*1200mm
Capacity:300kg/h
Automatic cutting ,Time saving, labor saving, economical and convenient
If you need to change another width size, only change the cutter shaft is ok
4.Horizontal packing machine with Date printer
This machine is suitable for packing long box Mihua Tang, Shaqima, moon cake, biscuits, bread, rolls, pie, instant noodles, candy and other foods.
Technical parameters of horizontal packing machine :
| Model | MK-220 |
| Pack speed | 50~150 |
| Pack film width | ≤250 |
| Pack length | 90-220 |
| 150-300 |
| Can choose as your requirements |
| Power | 2.5 |
| Main motor power | 0.75 |
| Heating power | 1.8 |
| Weight of machine | 450 |
| Dimension | 3800*780*1500 |
| Noisy | ≤75 |
| Power | 220V 50HZ |
| Material | OPP PE PVC OPP/CPP PT/PE KOP/CPP |
Product Tags:
|
|

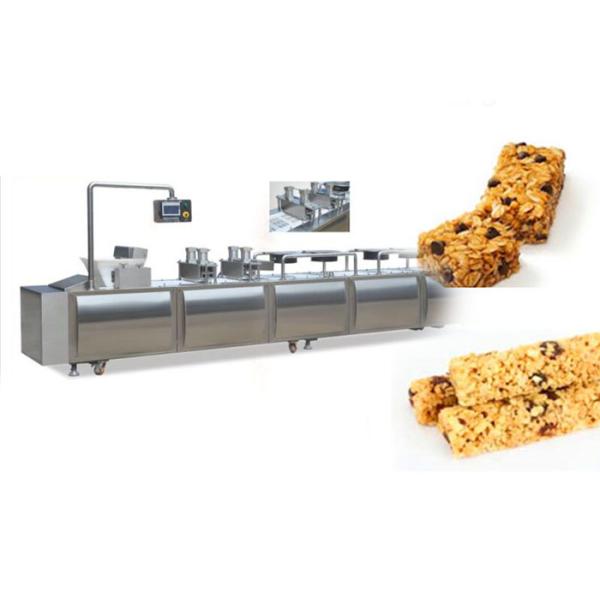

Cereal Bar Forming And Cutting Machine Images
|
